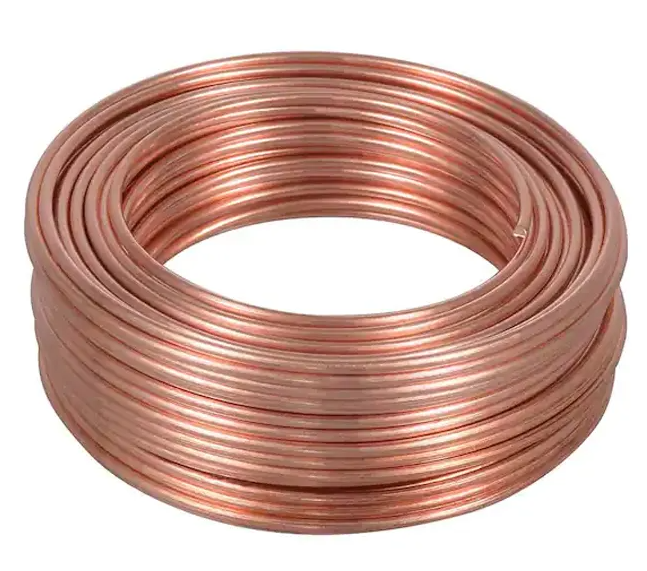

High Conductivity Pure Bare Copper Wire Electrical Conductor Solid Copper Wire
Discover premium-quality Bare and Insulated Copper Stranded Wire, engineered for superior electrical conductivity and durability. Crafted from 99.9% pure electrolytic copper (Cu-ETP), our wire ensures minimal resistivity (≤0.017241 Ω·mm²/m) and optimal performance in diverse applications. With customizable stranding (7/19/37/61 strands) and insulation options (PVC, PE, XLPE, Rubber), this wire meets ASTM B1/B2/B3, IEC 60228, and ISO 9001 standards. Ideal for power distribution, grounding systems, automotive wiring, and renewable energy projects, it offers flexibility, corrosion resistance, and easy installation. Backed by CE, UL, RoHS, and CCC certifications, our copper wire guarantees reliability.
Basic Info.
| Model NO. | TJ-10 | Application | Overhead, Earthing |
| Conductor Material | Copper | Sheath Material | Non-Insulation |
| Insulation Material | Bare | Material Shape | Round Wire |
| Range of Application | Earthing | Certification | ISO9001, CE, CCC, RoHS, VDE, UL |
| Brand | Sylaith | Color | Copper |
| Core | Copper | Insulation | None |
| Construction | Lightweight | Resistance | Weather |
| Installation | Easy | Maintenance | Low |
| Transport Package | Drum | Specification | 100 |
| Trademark | Sylaith | Origin | JIangsu |
| HS Code | 7413000000 | Production Capacity | 10000000meters/Year |
Product Parameters
| Category | Model | Product Name | Nominal Cross-Section | Conductor Structure (Strands*mm) | DC Resistance (20ºC) | Reference Ampacity | Diameter | Reference Weight |
| Bare Copper Stranded Wire | TJ-10 | Hard-Drawn Copper Stranded Wire | 10 | 7*1.33 | 1.83 | 85 | 4 | 89 |
| TJ-16 | Hard-Drawn Copper Stranded Wire | 16 | 7*1.70 | 1.15 | 115 | 5.1 | 142 |
| TJ-25 | Hard-Drawn Copper Stranded Wire | 25 | 7*2.12 | 0.727 | 150 | 6.4 | 222 |
| TJ-35 | Hard-Drawn Copper Stranded Wire | 35 | 7*2.50 | 0.524 | 180 | 7.5 | 311 |
| Insulated Copper Stranded Cable | JKLYJ-50 | XLPE Insulated Stranded Cable | 50 | 19*1.78 | 0.387 | 200 | 13.2 | 540 |
| JKLYJ-70 | XLPE Insulated Stranded Cable | 70 | 19*2.12 | 0.268 | 255 | 15.2 | 760 |
| Steel-Cored Copper Conductor | JTM-35 | Galvanized Steel-Cored Copper Conductor | 35+7 | Copper 6*2.50mm + Steel 1*2.50mm | 0.635 | 170 | 9.2 | 420 |
| JTM-50 | Galvanized Steel-Cored Copper Conductor | 50+8 | Copper 6*3.20mm + Steel 1*3.20mm | 0.425 | 210 | 11.5 | 610 |
Applications
Electrical Wiring: Buildings, appliances, and automotive systems.
Power Distribution & Grounding: Reliable earthing and overhead power lines.
Renewable Energy: Solar panel connections and wind turbine cabling.
Telecommunications & Robotics: Flexible conductors for dynamic environments.
Industrial Machinery: High-conductivity solutions for heavy-duty equipment.
Packing and Shipping
Company Information
Frequently Asked Questions
Q1: What is the difference between bare and insulated copper stranded wire?
A: Bare copper wire is uncoated, ideal for grounding and overhead applications where insulation isn't required. Insulated wire features a protective layer (e.g., PVC or XLPE) to prevent short circuits and corrosion, suitable for indoor wiring or harsh environments.
Q2: What certifications does this wire have?
A: Our wire complies with ISO 9001, CE, CCC, RoHS, UL, and VDE standards, ensuring safety and performance reliability.
Q3: Can I customize the wire stranding and insulation?
A: Yes! We offer customizable stranding (7-61 strands), insulation materials, colors, and packaging to meet specific project needs.
Q4: What is the minimum order quantity (MOQ)?
A: MOQ starts from 50kg, with bulk discounts available for larger orders.
Q5: How is the wire packaged and delivered?
A: We pack wires in durable drums or reels and ship globally via FOB/CIF terms. Lead time is typically 15 days.
Q6: Why choose copper over other conductors?
A: Copper offers superior conductivity, flexibility, and corrosion resistance, making it cost-effective for long-term use in high-efficiency systems.
